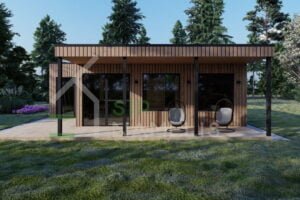

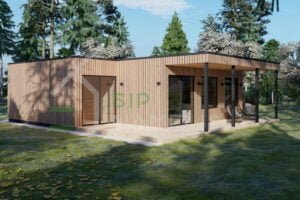

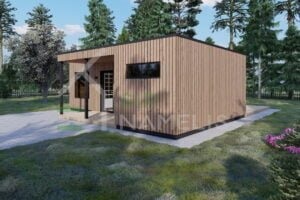

Timber Frame Summer House Owen 47m²
Material Specification
Product Equipment
| Included in the timber frame house kit: | Not included in the timber frame house kit: |
| Design and production of timber frame elements | Foundation |
| Delivery of elements to the construction site | Floors, interior doors, complete finishing |
| Complete exterior finishing (walls, roof covering, terrace) | Fireplace, ventilation |
| Windows, doors | Electrical and plumbing installation |
| Interior finishing – plasterboard panels |
Product Specifications
| Material | Frame panels |
| Area | 78.90 m² |
| Living area | 47.25 m² |
| External dimensions | 10625 mm x 9000 mm |
| Number of rooms | 5 |
| Height | 2850 mm |
| Roof | Paroc Ultra 200mm |
| Roof covering | Bituminous |
| Walls | Paroc Ultra 150 mm |
| Doors PVC | 100cm x 210 cm (1 unit), 80cm x 210 cm (3 units) |
| Windows PVC | 150cm x 150 cm (3 units), 50cm x 150 cm (1 unit), 190cm x 210 cm (2 units) |
| Warranty | 5 years |
| Interior finish | Natural wooden inside siding |
| Exterior finish | Natural wooden exterior siding |
| Fastening elements | Fastening elements, mounting foam, sealing tapes |
SIP Product quality
What are SIP’s?
Structural Insulated Panels (SIP) are a high-performance standardized system for residential and commercial building construction. The panels consist of an insulating foam core sandwiched between two structural facings, usually made of oriented strand board (OSB). SIP structures are produced in a modern factory and can be customized for individual projects. This is a very strong, energy-efficient, and cost-effective building system.
Cost Saving
Did you know that 40–50% of energy is consumed for home heating and cooling? The best way to reduce consumption is proper insulation, thus reducing heat loss. The SIP structure system has excellent thermal insulation properties, resulting in up to 50% lower heating and cooling costs compared to traditional masonry structures.
Speed
Whether it’s a custom project or standard prefabricated homes from SIP panels, such structures are assembled much faster than traditional masonry or block houses. They can be built at any time of the year.
Environmental Aspects
The standardized manufacturing process of SIP wooden structures and the possibility to recycle materials significantly reduce CO2 emissions.
Healthier and More Comfortable Living
Airtight construction is ideal for modern ventilation systems, which reduce energy costs and improve indoor air quality. Recuperators ensure a constant supply of fresh air without additional heat loss. As a result, the air inside the building is always fresh, and molds and allergens do not develop. Therefore, we recommend installing a recuperative system in residential buildings.
High-Quality Construction
A panel SIP construction functions as a monolithic shell, having up to 5 times higher structural parameters than a typical wooden frame construction. SE-SIP panels are strong, reliable, and long-lasting.
More Saved Space
Buildings from SIP panels occupy 7-10% less space than buildings from traditional bricks or blocks. As land prices constantly increase, every saved meter is valuable.
Reliable and Stable Insulation
Even after many years of exposure to adverse weather conditions, the insulation core of a SIP building system remains firm, stable, and reliable. Due to its exceptional properties, it cannot get wet or settle. It is always installed with quality and sturdiness in mind.
SIP MgO product quality
What is SIP MgO?
MgO SIP (Magnesium Oxide Board) is a three-layer construction product consisting of two magnesium oxide boards (MgO) and polystyrene foam glued in the middle. When combined into a single unit, MgO boards create an even stronger and thermally insulating structure, meeting Class A fire resistance requirements. This board is characterized by good thermal and sound insulation properties, resistance to water, compression, and bending.MgO SIP boards are resistant to water and frost, meaning your construction project can be implemented in any weather. Due to their appropriate size, they are easier to install even in strong winds.
Speed
Whether it’s a custom project or standard prefabricated homes from MgO SIP panels, such constructions are assembled much faster than traditional masonry or block houses. Therefore, construction can be carried out at any time of the year.
High Quality Standards
SIP MgO panels not only help save heat but also meet modern sustainability standards. The production process of these panels emits less CO2. They can be recycled and use significantly less wood, contributing to environmental preservation.
Timber frame product quality
Timber frame buildings
The timber frame construction technique consists of a structural framework of load-bearing studs, beams, and joists, to which all other building elements are attached. This method is valued for its fast construction process and high-quality result. We can prepare a design according to your project or offer already prepared options. We can also modify standard projects to suit your preferences. We use only high-quality and reliable materials that meet safety, durability, and longevity standards.
